3 Subsea IP Camera Ethernet System (600m) ROV/AUV with POE

3 Subsea IP Camera Ethernet System (600m) ROV/AUV with POE

NEED TETHER OR CUSTOMIZATION? CONTACT US!

Regular price $2,990.00 USD
Regular price Sale price $2,990.00 USD
Sale Sold Out

Lead-time: 4-6 Weeks

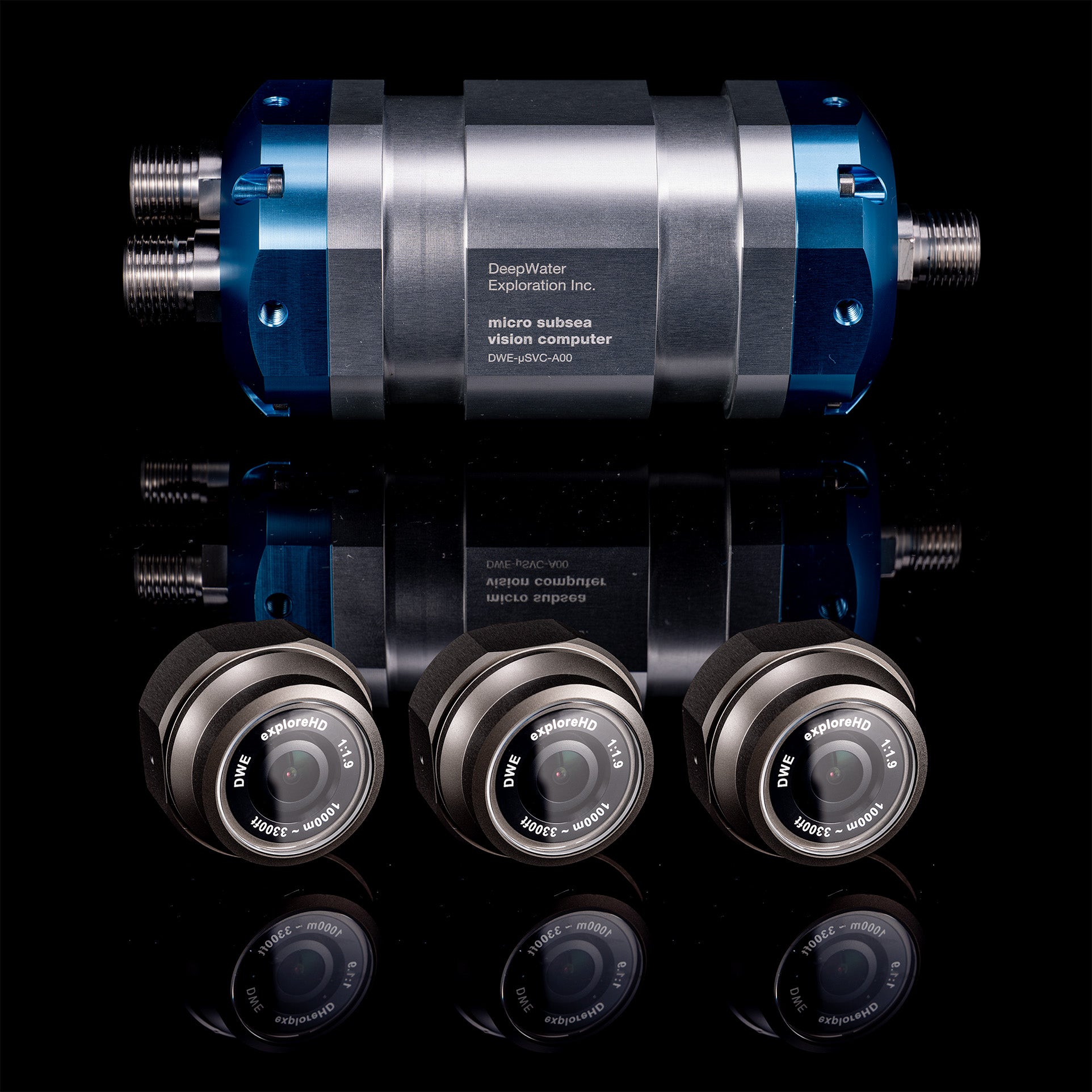

Replace your single IP-camera with this 3-camera system. This bundle features three exploreHD Heavy cameras with Cobalt and one micro SVC module, offering a Power over Ethernet plug-and-play solution. Equipped with our DWE OS software, each camera supports individual UDP streaming and allows for easy adjustment of bitrate, exposure, and various essential camera controls. Depth rated to 600 meters

Technical Data

NDAA Compliant
microSVC Specs
Dimensions: 125 x 60mm (excluding connectors)

POE Specifications:
Standard: IEEE 802.3at-2009 PoE
Input voltage: 40-57 V DC, Class 4 device
Ethernet Speeds: 100 BaseT Ethernet

Water-Resistance Specifications
Water-Resistance Depth: 600 Meters


Computing Specifications
SDRAM: 512MB
On Board Storage Options: 64 GB
CPU: 64-bit ARM SoC Quad-Core
Wireless: 2.4GHz 802.11 b/g/n wireless LAN
Operating Temperature: 0-60 C

Connectivity: Supports up to 3x USB 2.0 Ports, POE 100BASE Ethernet

Other Specifications
Bootup Time: 50 Seconds
Latency: 40ms or less when streaming all 3 cameras at 1080P HD

exploreHD Heavy Specifications
Read Here

Fit For
Remotely Operated Vehicles (ROVs)
Autonomous Underwater Vehicles (AUVs)
Autonomous Surface Vehicles (ASVs)
Aquaculture Systems
Aquarium Camera Array
Weather-resistant Unmanned Aerial Vehicles (UAVs)
Aerial Drones
...and more!

Contents

  • 3x exploreHD Heavy (Cobalt 1 Meter Cable)
  • microSVC


View full details

Connection Diagram

This bundle features 3 exploreHD Heavys with Cobalt for a plug and play solution with our microSVC.

Leveraging the capabilities of the DWE OS, these cameras can be concurrently streamed via UDP with a latency of under 40ms per camera. DWE OS additionally provides advanced control over individual camera settings, encompassing exposure, bitrate, compression type, contrast, saturation, white balance, and more.

Thanks to the exploreHD's onboard H.264 compression, each camera can be capped at 10Mb/s while still delivering HD streaming. This ensures that the total bandwidth for all 3 cameras remains below 100Mb/s, facilitating Power over Ethernet (POE) compatibility for the Subsea Vision Computer.

DWE OS on Micro Subsea Vision Computer
