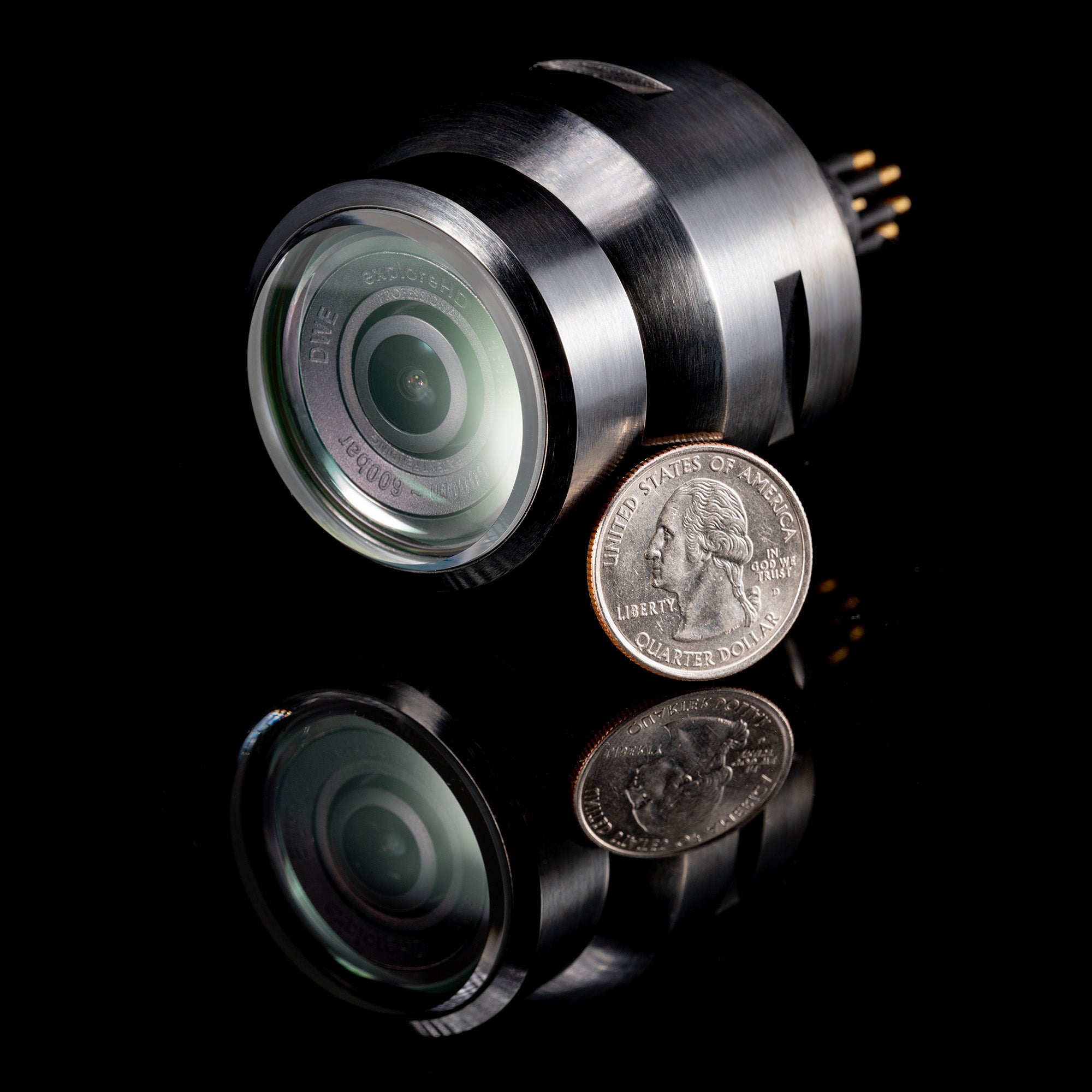

exploreHD Pro (6000m) Underwater ROV/AUV USB General Vision Camera

exploreHD Pro (6000m) Underwater ROV/AUV USB General Vision Camera

CONFIGURE YOUR CAMERA!

LENS SELECTION

NEED CUSTOMIZATION? CONTACT US!

Regular price $3,000.00 USD
Regular price Sale price $3,000.00 USD
Sale Quoted Product

Lead Time: 1-2 Weeks

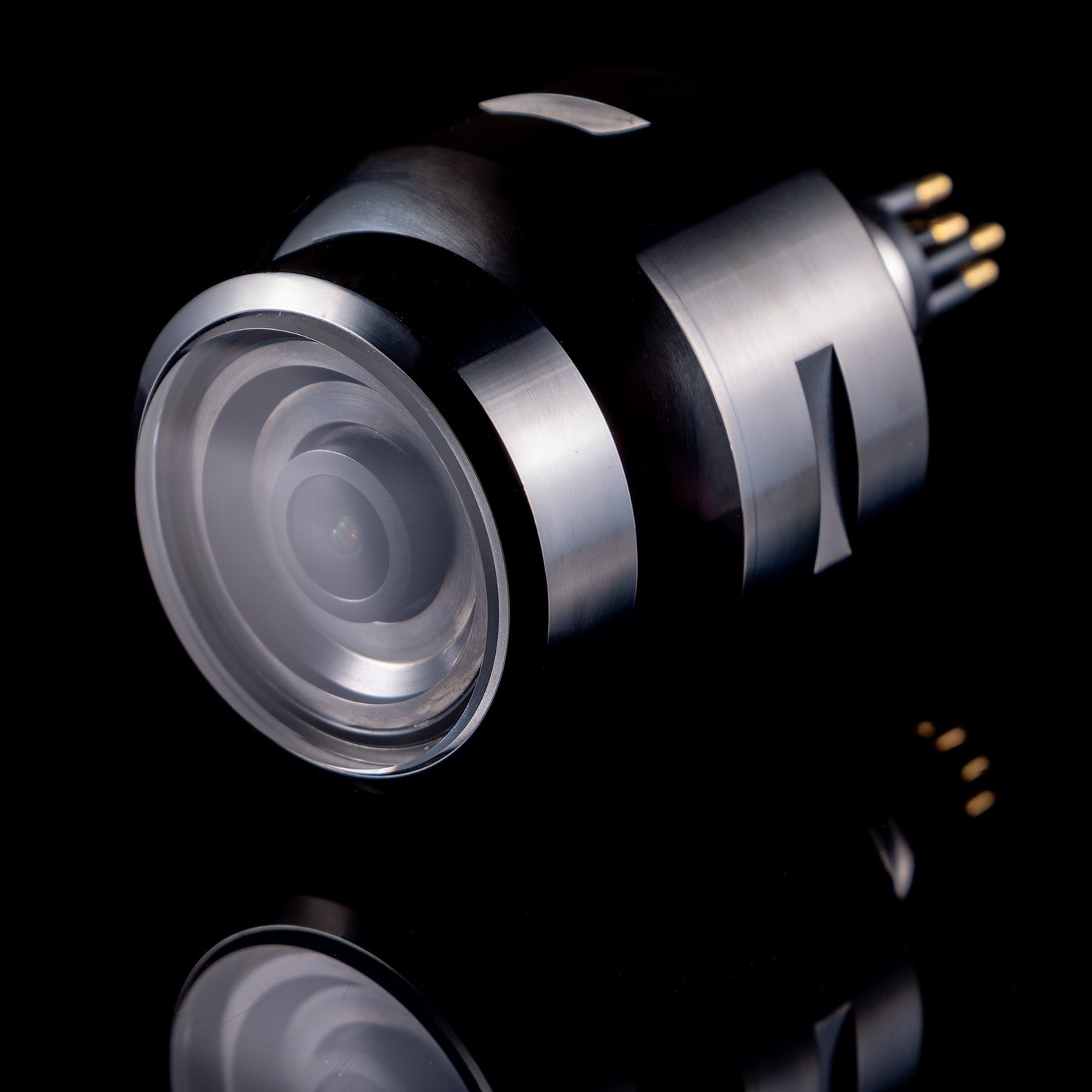

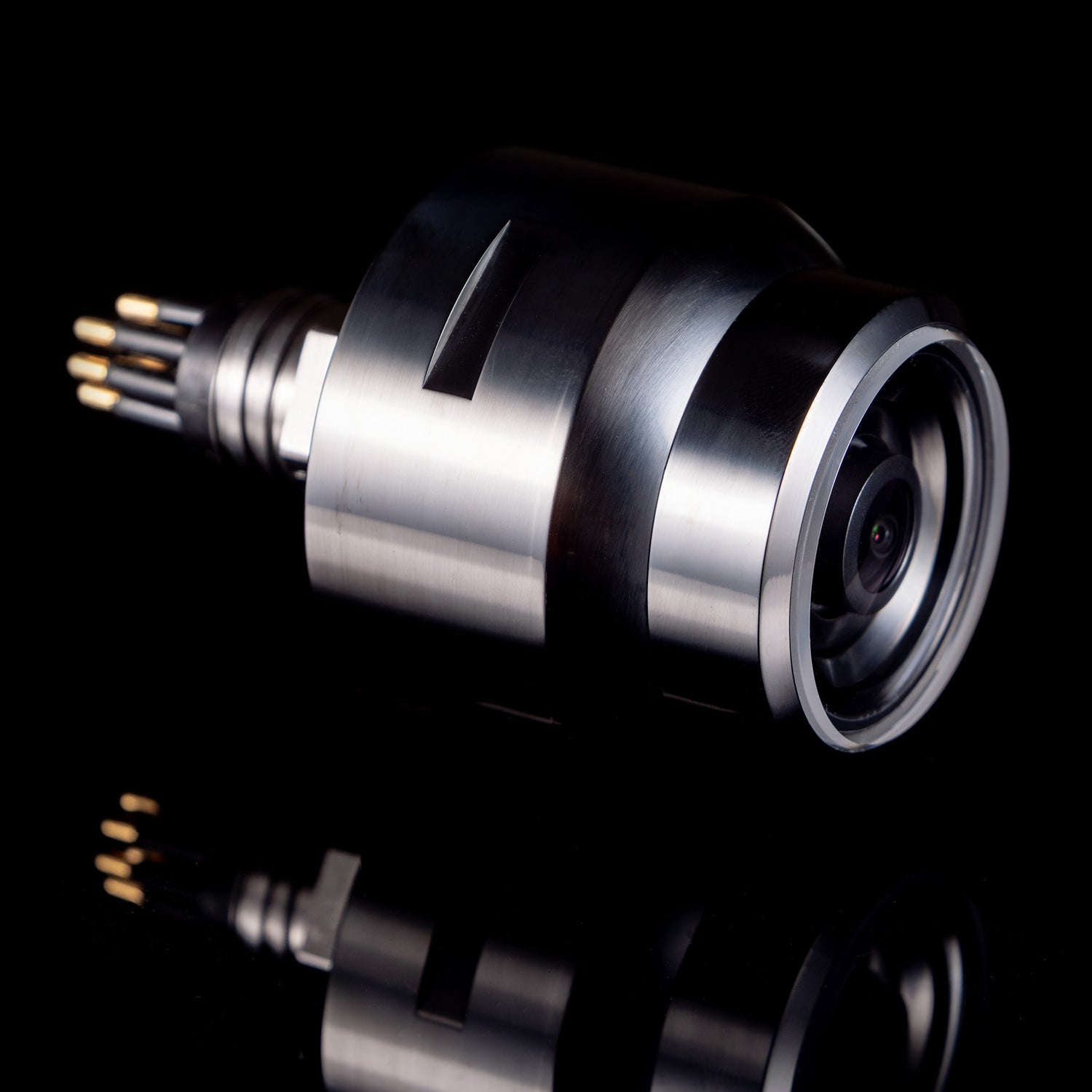

Introducing the exploreHD Pro, our most advanced machine vision camera with an exceptional depth rating of 6000 meters. This groundbreaking camera empowers you to explore depths previously inaccessible by most. Precision Machined from titanium and thoroughly coated with Diamond-Like Carbon (DLC), the exploreHD Pro offers durability without compromising on size and high image quality. Its compact form factor opens up a wide range of applications for subsea robotics and machine vision requirements.

We understand the importance of maintaining high image quality and capabilities, even with a compact form factor and impressive depth rating. That's why the exploreHD Pro features the same backside illuminated sensor found in the exploreHD Heavy. This sensor delivers exceptional low light performance, while reducing noise for high resolution imaging.

The exploreHD Pro is specifically designed to tackle advanced computer vision applications, bridging the gap between operator-controlled and autonomous underwater robots. When combined with our cutting-edge DWE OS software, the potential for exploration becomes boundless. Building upon the success of our popular exploreHD Controls, this software offers a multitude of new features such as bitrate control, brightness, contrast, exposure, backlight compensation, TrueColor, and more!

Read Full Datasheet

Technical Data

Read Full Datasheet

Download Models

Model: DWE-EHDPUSB

NDAA Compliant

Connector Type: MCBH8MTI

Water-Depth Rating
6000 meters (1.5X Safety Factor)

Physical Specifications
Mass in Air: 385 grams
Mass in Water: 280 grams
Main Case: Diamond-Like Carbon (DLC) Coated Titanium
Front Port: Scratch-resistant sapphire with internal AR coating

Camera Specifications
Image Sensor: 1/2.8" Sony Exmor™ 12 bit
                        STARVIS BSI CMOS Rolling Shutter
Resolution: 1920x1080
                   (Adjustable down to 360p)
Framerate: 30fps with H.264/MJPEG
Format: H.264, MJPEG, YUY2
Chroma Subsampling: 4:2:2 with YUY2
                                    4:2:0 with MJPEG/H.264
Color Depth: 8-bit per RGB channel
                     (24-bit total per pixel)
Bitrate: 10Mb/s with H.264
UDP Streaming Latency (with Raspberry PI): 35ms ± 10
USB Direct Streaming Latency: 33ms ± 5
Connection: USB 2.0 High Speed
Power Rating: 5V / 300mA
Communication: USB 2.0 (UVC Compliant)

Connector Pinout
SubConn
1: Black : Ground
2: White : NC
3: Red : +5V
4: Green : NC
5: Orange : NC
6: Blue : NC
7: White/black : DATA -
8: Red/black : DATA +

Must be USB or Ethernet Grade Cables for the Data Pairs

Lens Specifications
Type: Fisheye
Lens Aperture: f/1.9
View Angle: 150 Degrees Diagonal (in water)
Minimum Focus Distance: 20-30 cm

Fit For
Remotely Operated Vehicles (ROVs)
Autonomous Underwater Vehicles (AUVs)
Autonomous Surface Vehicles (ASVs)
...and more!

Lens Specifications

Standard Lens Option
Type: Fisheye
Lens Aperture: f/2.0
Minimum Focus Distance: 20-30 cm

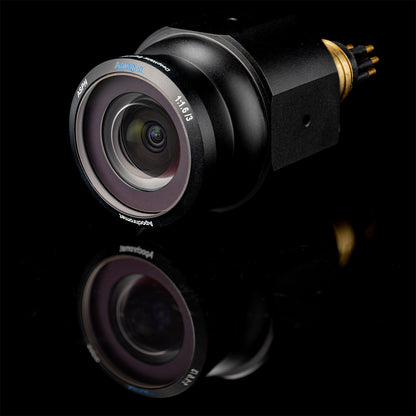

Aquagon Lens™ Option
(Distortion, CA-free Proprietary Optics)
Focal Length: 3mm
Lens Aperture: f/1.6 (fixed aperture)
Lens Construction: 7 elements; 2 aspherical elements, 2 ED elements

View Angle: 100 Degrees Diagonal (in water)
Minimum Focus Distance: 25cm
Distortion: <-1.5%

Calculated FOV
Diagonal: 95 Degrees
Horizontal: 87 Degrees
Vertical: 56 Degrees

Learn More

Note: Alternative Lenses Available Upon Request

Contents

  • 1x exploreHD Pro USB Camera
View full details

HIGHLIGHTED FEATURES

Learn about the unique feature of this product below.

STUNNING TITANIUM HOUSING

Titanium housing with Diamond-Like Carbon coating for superior scratch and corrosion resistance. Perfect for subsea exploration in harsh environments at extreme depths.

BACKSIDE ILLUMINATED SENSOR

New backside-illuminated sensor and advanced processing for exceptional low-light performance and dynamic range, surpassing its predecessor.

MADE WITH SUBCONN

Engineered with SubConn for easy, reliable, moisture-resistant connections in a space-efficient design. Enjoy the convenience of easy wet-mate connector with industry-proven reliability.

SAPPHIRE DOME CRYSTAL

The Professional sees the world through an internal AR-coated sapphire crystal that delivers unparalleled strength, scratch-resistance, and resilience.
