Advantages of our Aquagon™ Optics compared to Traditional Flat Port Lenses

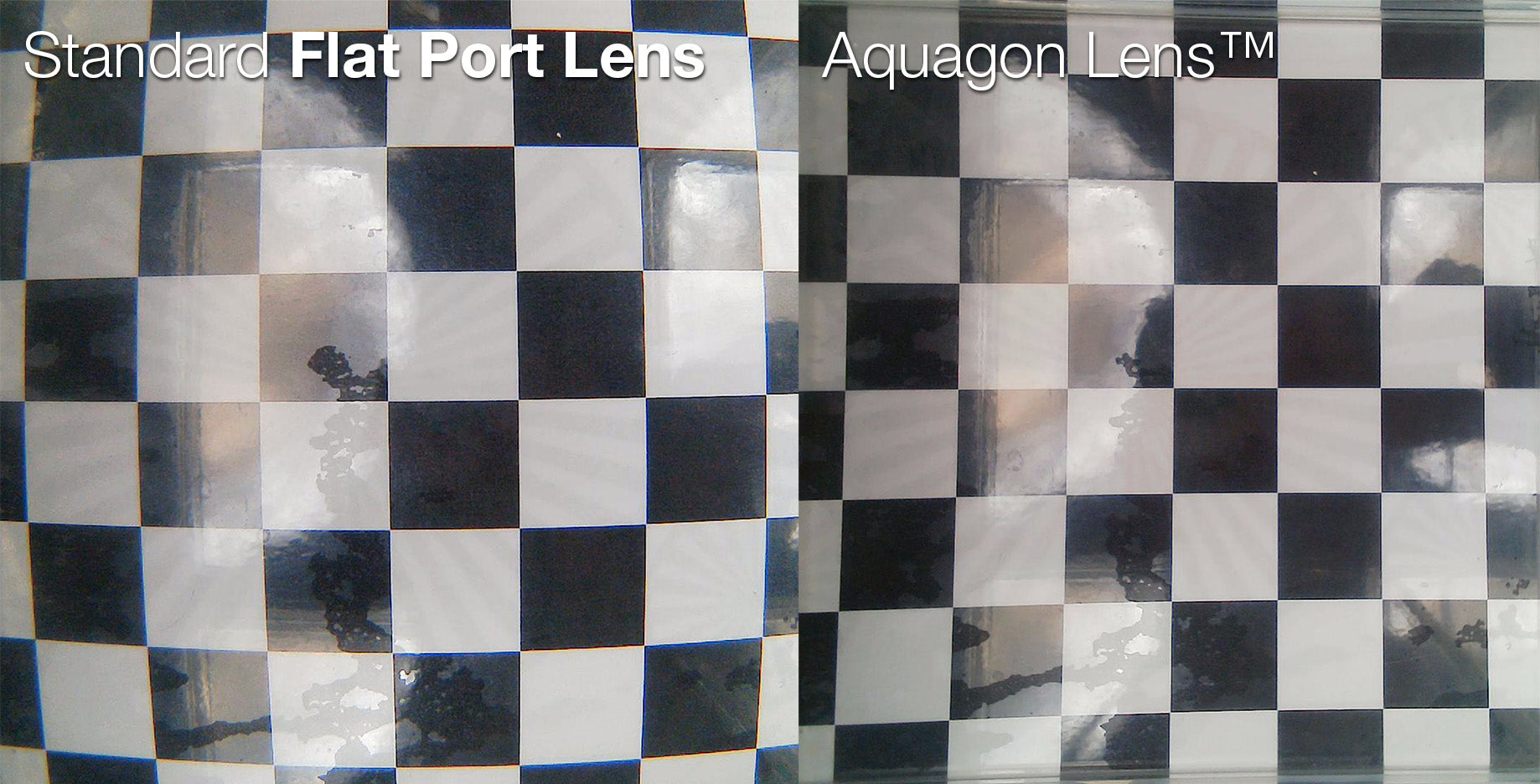

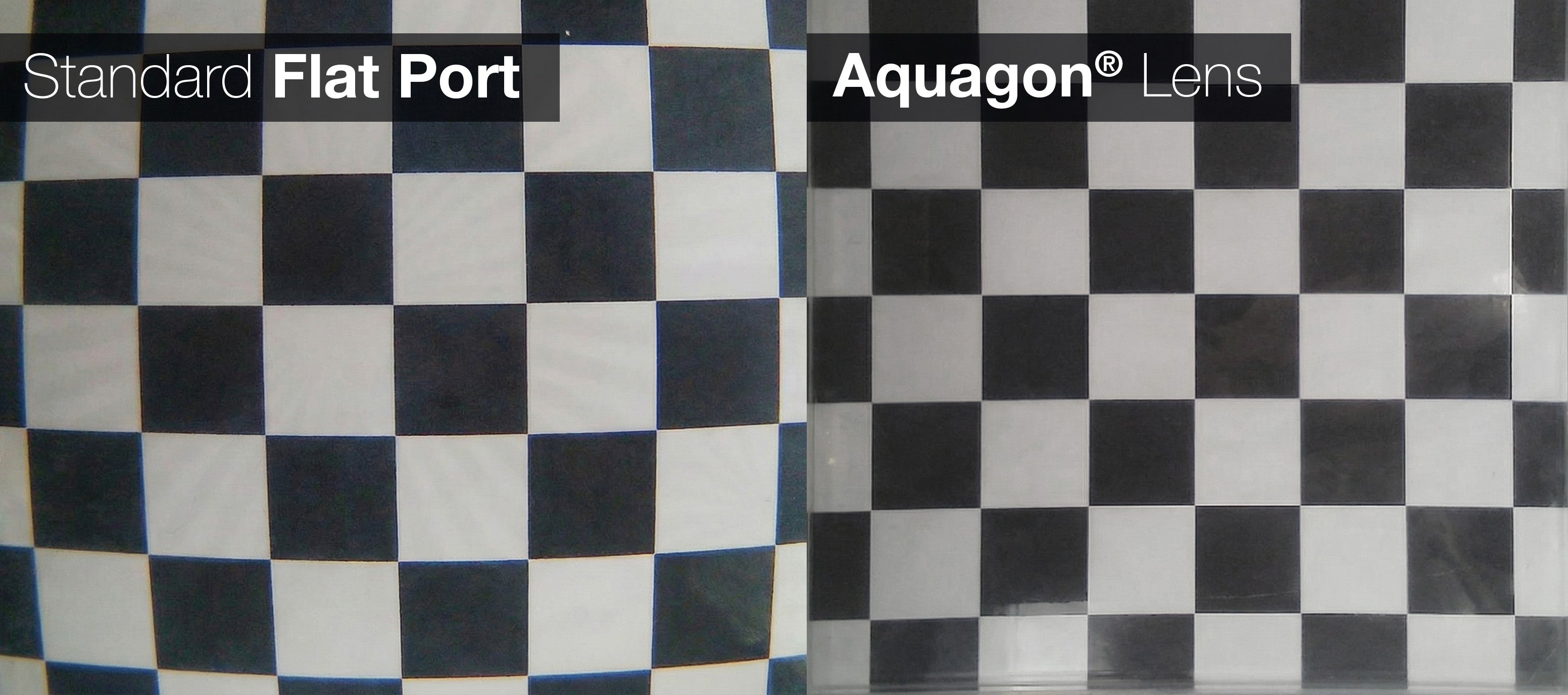

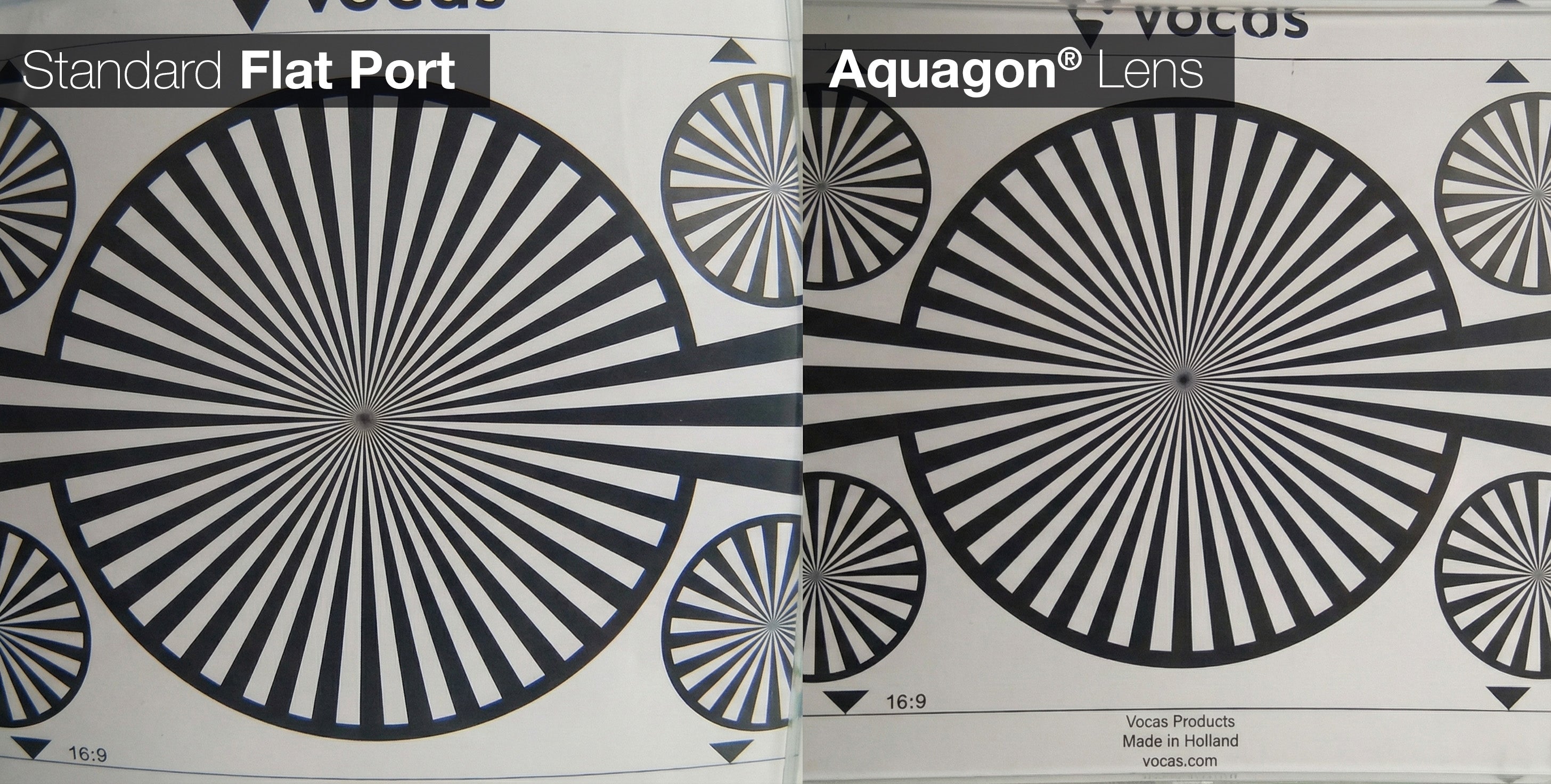

LOW DISTORTION

Compared to our Standard eHD Flat Port Lens, the Aquagon™ Optics offers extremely low distortion, making it perfect for precise computer vision applications!

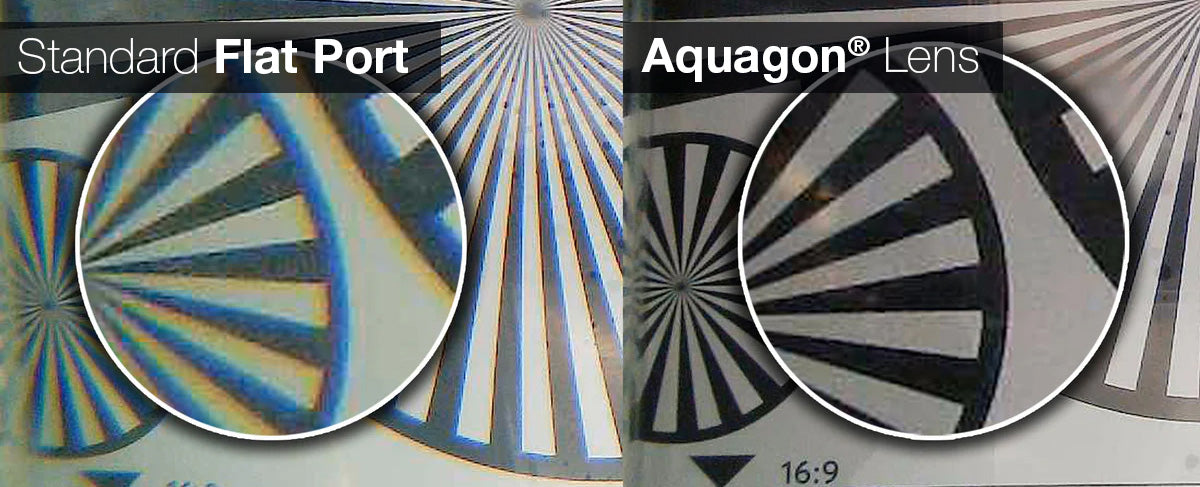

MINIMAL CHROMATIC ABERRATION

Aquagon™ Optics offers low chromatic aberration, providing accurate color reproduction.

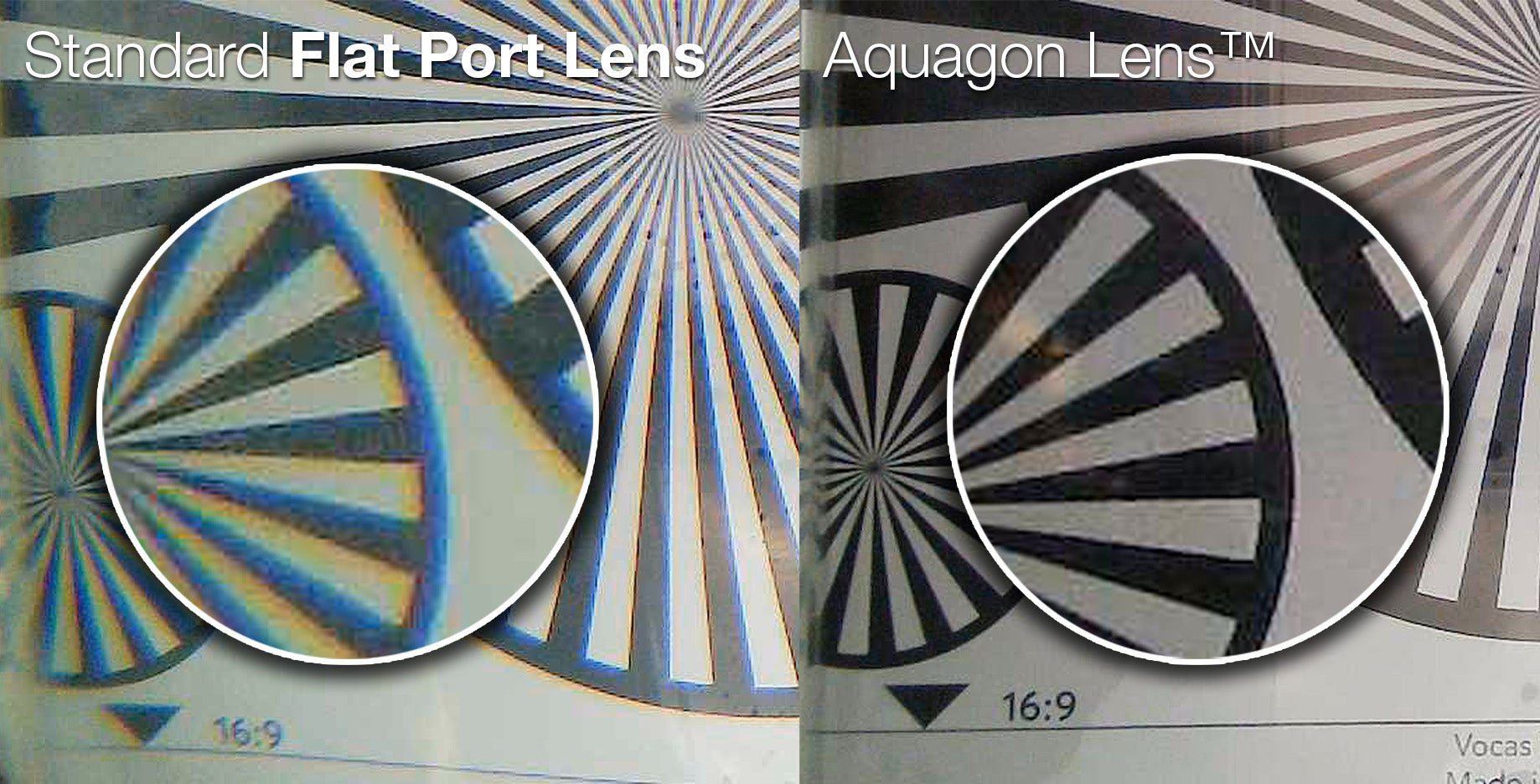

INCREASED SHARPNESS

Compared to our Standard eHD Flat Port Lens, the Aquagon™ Optics offers sharper images at the same resolution.

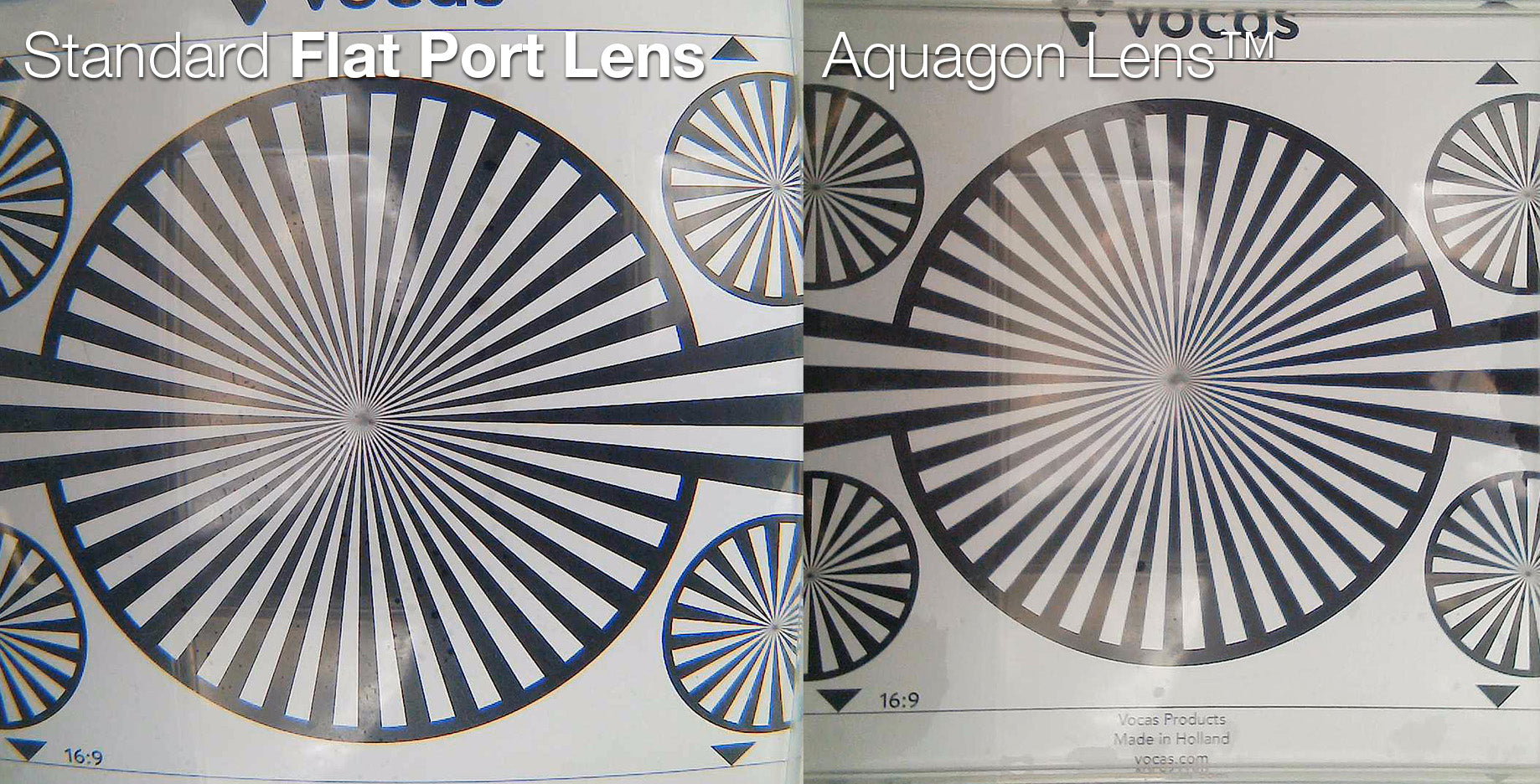

WIDE FIELD OF VIEW

See more in your frame with Aquagon™ Optics while offering virtually no distortion compared to fish eye lens in a flat port lens.

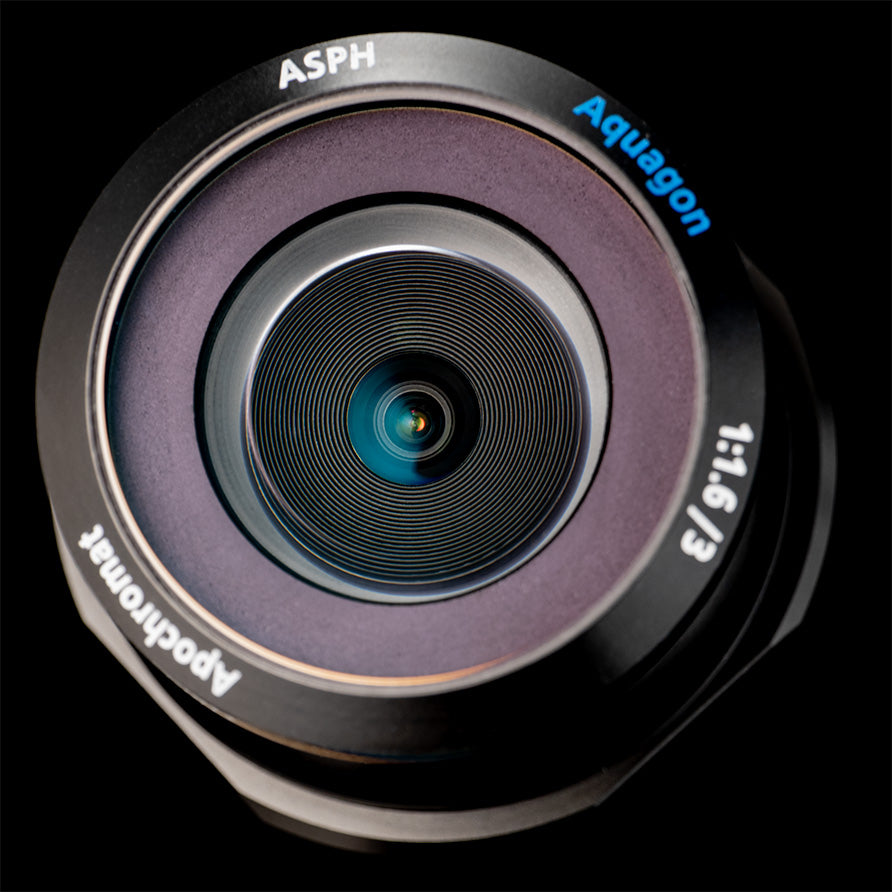

ONE OF A KIND OPTICAL CONSTRUCTION

The patent-pending Aquagon™ Optics comprises a total of 7 elements. This combination effectively minimizes chromatic aberration and distortion.

DGS™ MULTI-COATING

Our exclusive DGS™ Lens coating, featuring multiple layers, provides protection against glare and ghosting when submerged underwater. This coating drastically enhances visibility for the Aquagon in environments characterized by unpredictable lighting conditions.

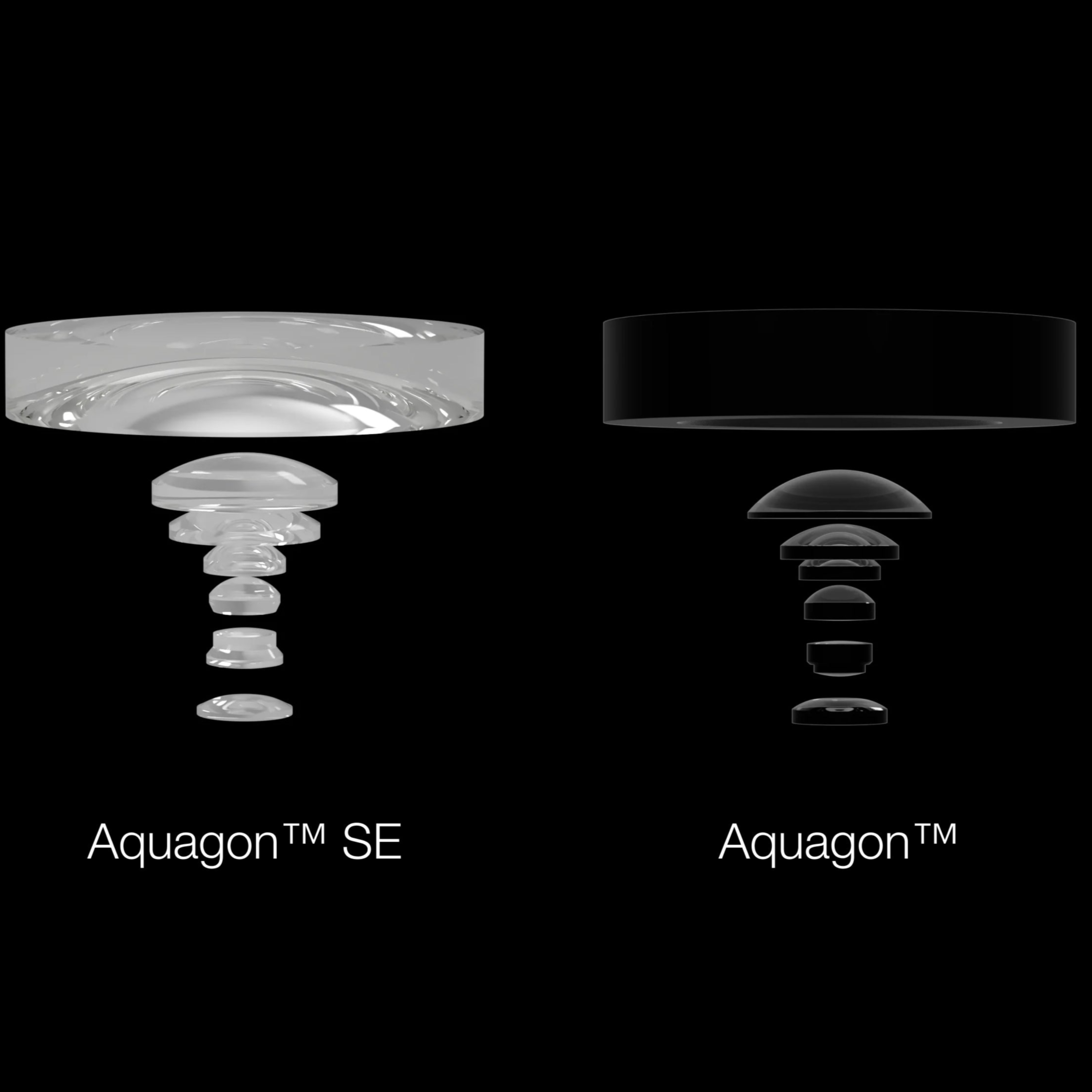

Aquagon SE vs Aquagon

Feature Aquagon SE Aquagon
Element Count 7 7
Lens Composition 2 optical composites, 1 extra-low dispersion 2 aspherical, 2 extra-low dispersion
Focal Length 2.95mm 3mm
Distortion -2.5% -1.5%
Lens Coating Standard AR Coating DGS™ Multi-Coating

Aquagon™ SE - Technical Specifications

Lens Technical Specifications

Focal Length: 2.95mm
Aperture: f/1.6 (fixed aperture)
Minimum Focusing Distance: 25cm
Lens Construction: 7 elements; 2 composite elements, 1 ED elements
Back Focal Length: 2.05mm
IR Filter: IR 650nm filter
Distortion: <-2.5%

Maximum Diameter: 40mm
Overall Length (Lens Only): 23mm
Overall Length (with eHD Heavy/sHD Housing): 50mm

Calculated Field of View

exploreHD Heavy/Pro Sensor:

Diagonal: 95 Degrees
Horizontal: 87 Degrees
Vertical: 56 Degrees

stellarHD/Pro Sensor:

Diagonal: 93 Degrees
Horizontal: 78 Degrees
Vertical: 67 Degrees

Aquagon™ - Technical Specifications

Lens Technical Specifications

Focal Length: 3mm
Aperture: f/1.6 (fixed aperture)
Minimum Focusing Distance: 25cm
Lens Construction: 7 elements; 2 aspherical elements, 2 ED elements
Back Focal Length: 2.05mm
IR Filter: IR 650nm filter
Distortion: <-1.5%

Maximum Diameter: 40mm
Overall Length (Lens Only): 23mm
Overall Length (with eHD Heavy/sHD Housing): 50mm

Calculated Field of View

exploreHD Heavy/Pro Sensor:

Diagonal: 95 Degrees
Horizontal: 87 Degrees
Vertical: 56 Degrees

stellarHD/Pro Sensor:

Diagonal: 93 Degrees
Horizontal: 78 Degrees
Vertical: 67 Degrees

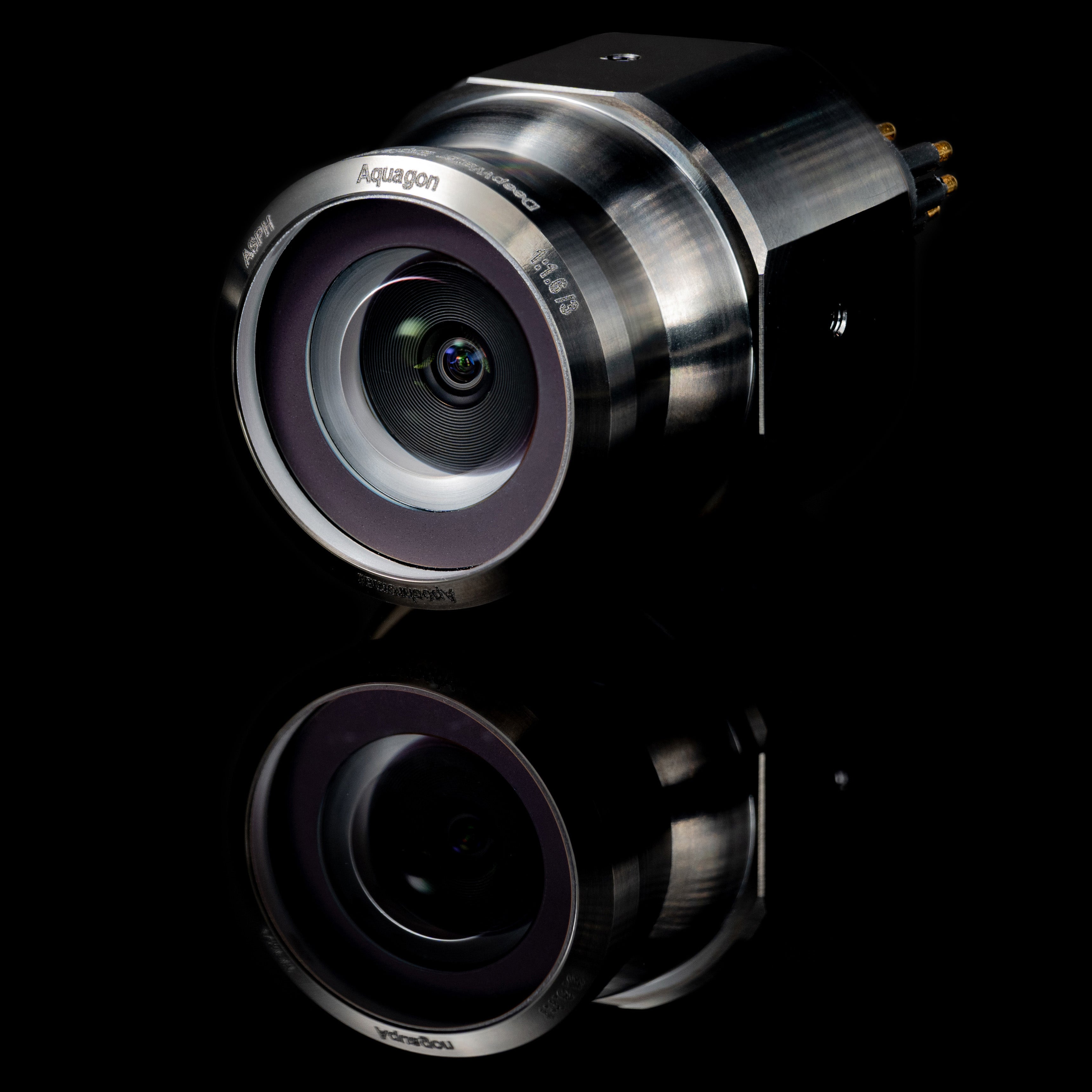

Cameras Compatible with Aquagon™ Optics
