Model/Part Number: DWE-ULXR1

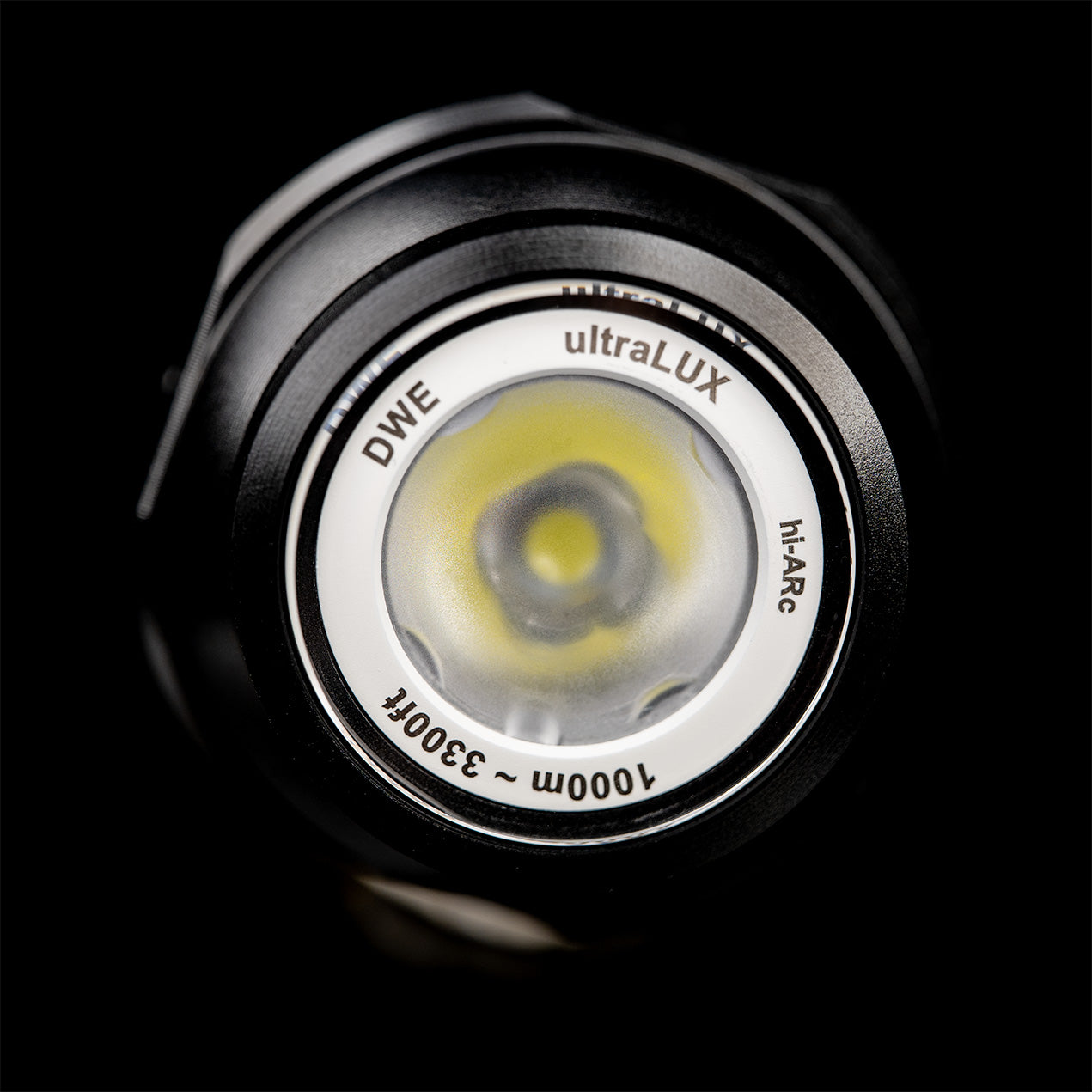

Introducing the ultraLUX, our latest innovation in underwater LED lighting!

With an impressive output of 1720 lumens, the ultraLUX illuminates ocean depths with unmatched clarity, making it ideal for ROV/AUV and other underwater vehicle applications. Built to endure the pressures of deep-sea environments, it boasts a remarkable depth rating of 1000 meters to 2000 meters, ensuring consistent performance under extreme conditions. The ultraLUX features a broad operating voltage range of 12 to 48 volts, allowing for effortless integration with various underwater vehicles. It includes a built-in PWM dimmer circuit, enabling straightforward dimming capabilities via PWM across a wide logic voltage range. Constructed with a high-quality sapphire element and a specialized lens, the ultraLUX offers a robust design with focused light distribution. Equip your vehicle with the ultraLUX to explore new frontiers in underwater exploration.

Technical Data

Model/Part Number: DWE-ULXR1

Check out our ultraLUX Documentation Page for more details!

Water-Depth Rating
600 meters with Cobalt (1.1X Safety Factor)
1000 meters with WetLink (1.5X Safety Factor)
2000 meters with SubConn (1.5X Safety Factor)

LED Specifications
Maximum power: 12.6W
Operating Voltage: 12 - 48V
PWM Logic Voltage: 3 - 48V
Full Brightness Voltage: 15 - 48V
Max Current: 1.05A

Maximum Luminous flux: 1720 lumens
Color temperature: 6500K
Operating temperature: 85°C
Viewing angle in air: 125°

Contents

• 1x ultraLUX
• 1x Metal Bracket
• 2x M2x0.4 Screws for Mount
