Model/Part Number: DWE-ELWIRUSBR0

Standard Cable Length: 1 meter

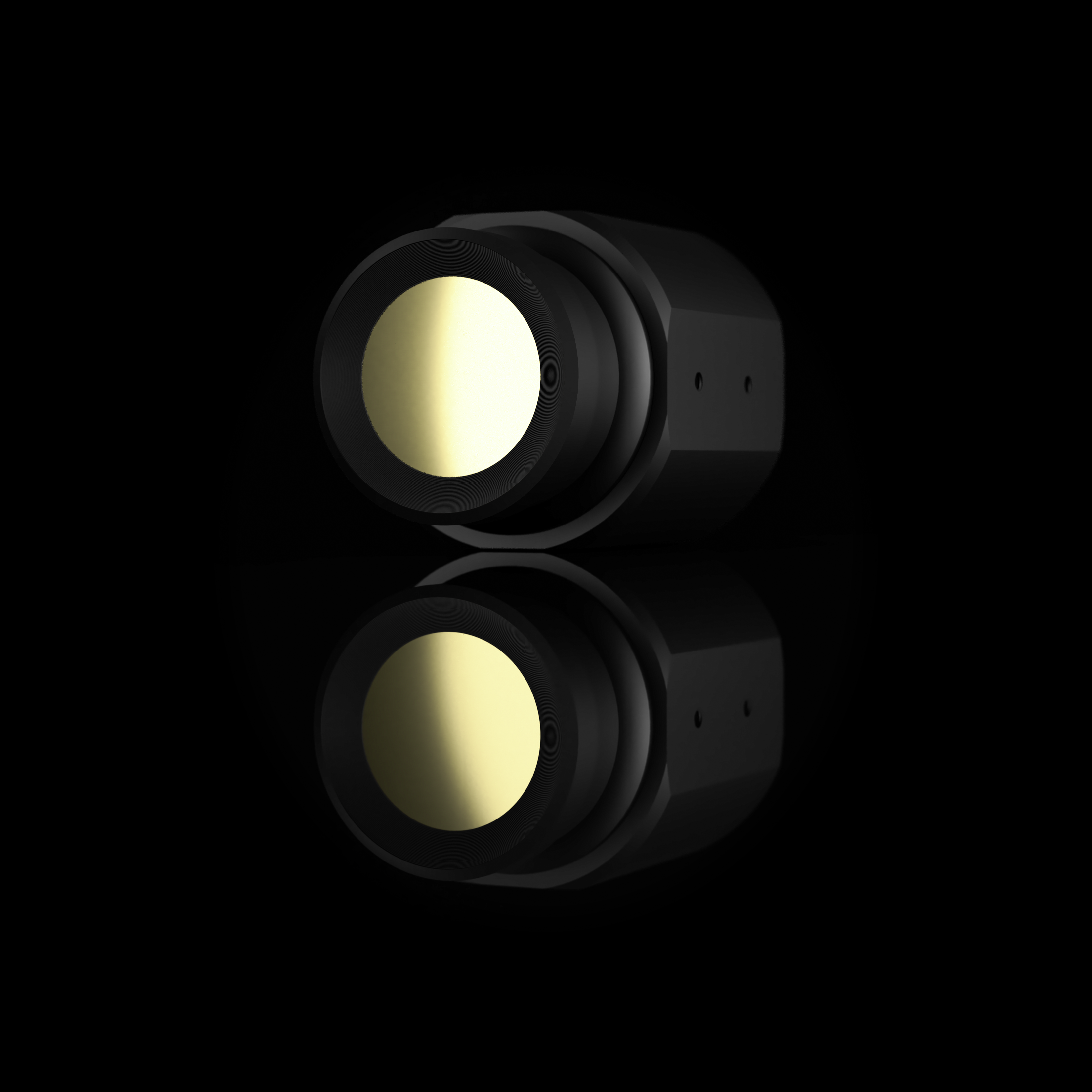

This camera is a cutting-edge Long-Wave Infrared (LWIR) Camera engineered for rugged ocean surface operations. Built to withstand the harshest marine conditions, it boasts exceptional durability and resilience, capable of surviving complete submersion in water and withstanding the immense pressures of ocean depths. Whether mounted on oceanic vehicles or used in demanding surface applications, this camera is the ideal companion for maritime missions.

Key Features:

• Rugged Design: Constructed with corrosion-resistant materials and a pressure-rated housing to endure rough handling and extreme environments.
• Submersion Survivability: Designed to survive prolonged exposure to high-pressure submersion and resume operation seamlessly upon resurfacing.
• Reliable Thermal Imaging (Above Water): Provides high-precision thermal data in surface environments for applications such as navigation, surveillance, and equipment monitoring.
• Compact and Lightweight: Engineered for integration with ocean vehicles and equipment without adding unnecessary bulk.

⚠️ Important Note: The camera does not produce thermal imaging or vision data while submerged. Its primary use is for surface-level thermal imaging, with enhanced survivability in underwater scenarios.

Equip your oceanic missions with the resilience and reliability of our LWIR Camera, designed to endure the extremes of the marine world while delivering exceptional thermal performance above water.

Fit For
Autonomous Surface Vehicles (ASVs)
Oceanographic Buoys and Platforms
Surface Vessels (Unmanned or Manned)
Oil and Gas Inspection Vehicles
Hydrographic Survey Vehicles
Weather-resistant Unmanned Aerial Vehicles (UAVs)
Aerial Drones
...and more!

Technical Data

Model/Part Number: DWE-ELWIRUSBR0

Standard Cable Length: 1 meter

NDAA Compliant

Water Resistance Specifications:

• Waterproof Depth:
  • 50m (Impermeable HDPE)
  • 100m (Naval-Grade Aluminum)
• Ingress Protection Rating: IP69K+ Equivalent
• Safety Margin: 25%

Camera Specifications (TBD):

• Maximum Resolution: 640 x 480
• Pixel Pitch: 24 µm
• Pixel Operability: > 99.5%
• Wavelength: 8-14 µm (LWIR)
• Maximum Frame Rate: 9 Hz (Global), 30Hz (restricted, on-request)
• Sensitivity (NETD) @ F/1.0: < 50 mK
• Output Formats: MIPI CSI-2 x2-lanes, YUY2
• Latency: 1 ms
• Time to First Image: < 7 s
• Power Consumption: 1.2 W
• Operating Voltage: +5V, Power over USB
• Lens Options: 40° or 60° Horizontal FOV
• Operational Temperature Range: -20 °C to +65 °C
• Storage Temperature Range: -40 °C to +85 °C
• Scene Dynamic Range: -100 °C to +400 °C
• Thermal Shock: -40 °C to +85 °C, 1000 cycles
• Vibration: 10-2000 Hz, 3 G_rms
• Mechanical Shock: 39 G, 11ms
• Sun Protection: Short-wave block coating on lens elements

Physical Specifications:

• Dimensions: 49mm x 49mm x 80mm (1.93in x 1.93in x 3.15in)
• Main Case Options:
  • Naval-grade, Corrosion Resistant Aluminum Housing
  • Impermeable HDPE Lightweight Housing
• Front Port: Germanium Front Port with Anti-Reflective and DLC Coatings
• Mounting: M3 x 0.5 screw hole pairs on each side (4x)
