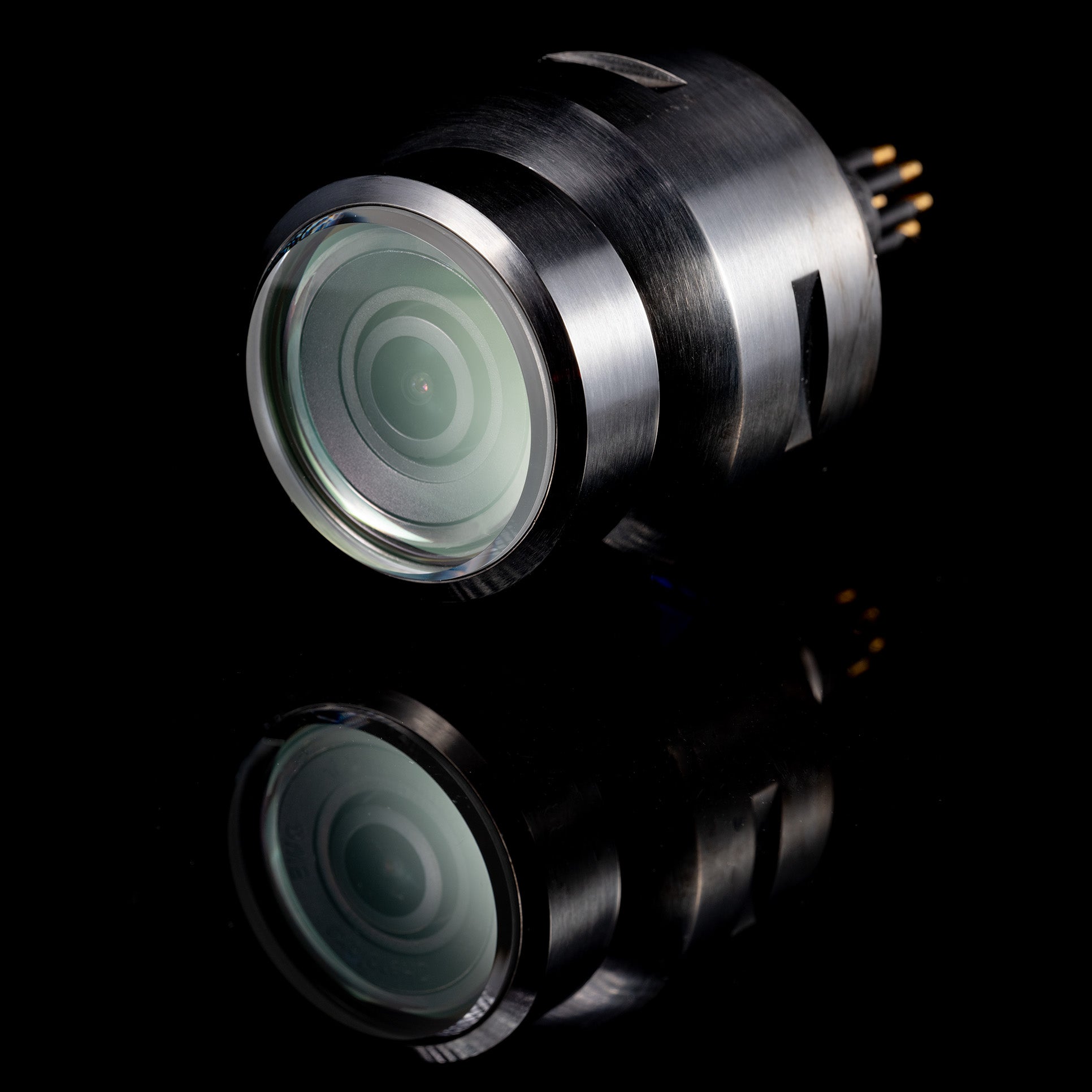

stellarHD Pro (6000m) 60FPS Global Shutter Subsea ROV/AUV USB Machine Vision Camera [Coming Soon]

stellarHD Pro (6000m) 60FPS Global Shutter Subsea ROV/AUV USB Machine Vision Camera [Coming Soon]

CONFIGURE YOUR CAMERA!

LENS SELECTION

NEED CUSTOMIZATION? CONTACT US

Regular price $3,150.00 USD
Regular price Sale price $3,150.00 USD
Sale Quoted Product

PRE-ORDER TODAY! READY IN 1-2 MONTHS.

Introducing the world's first patent-pending UVC camera that boasts a 2MP HD Global Shutter sensor all through a USB output while featuring external Frame-Sync capability with microsecond accuracy. All of these features in a familiar easy-to-use package with an impressive 6000 meter water-depth rating.

Equipped with a modern Global Shutter sensor and a proprietary PCB, you will be able to capture synchronized video like never before. Using our frame-syncing technology, chain a multitude of cameras to capture simultaneously-synchronized video up to 60 FPS.

Choose between color or monochrome sensor. If color is not a necessity, monochrome sensor is recommended as it will offer better sharpness and low light performance with less bandwidth.

This camera offers versatile frame-syncing configurations for any project scale. Choose between a 1-leader/multiple-follower setup to have one camera control the synchronization of others, perfect for multi-angle captures. Alternatively, connect all cameras to an external clock signal for large-scale, complex operations. This flexibility ensures precise, simultaneous video capturing, making the stellarHD ideal for advanced multi-camera underwater setups.

Furthermore, due to its UVC compliant nature, the stellarHD is the first plug and play machine vision capable subsea camera. This makes the stellarHD the perfect choice for anyone looking to make a truly modern multi-cam underwater setup.

Technical Data

NDAA Compliant

Model: DWE-SHDPUSBR1

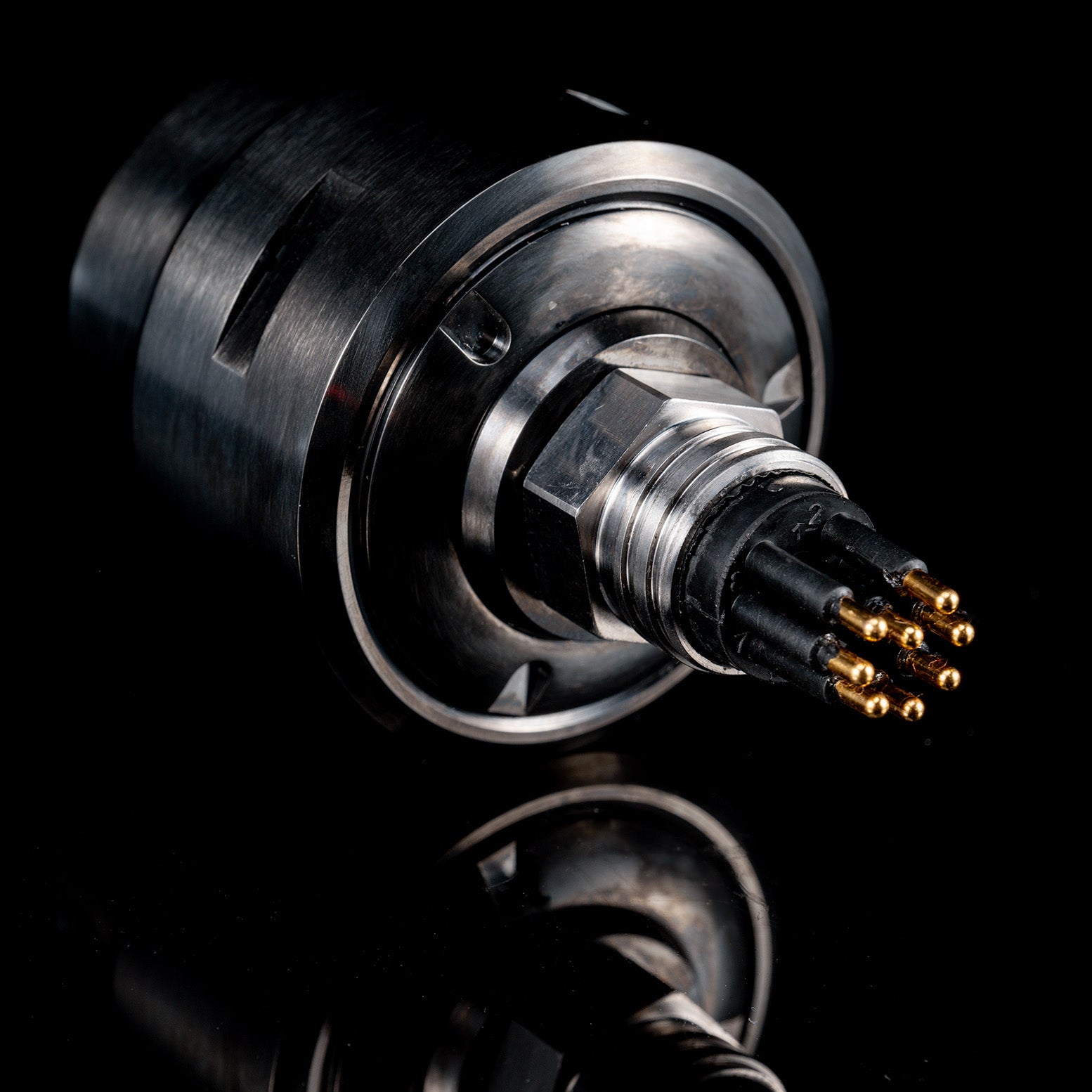

Connector Type: MCBH8MTI

Water-Depth Rating
6000 meters (1.5X Safety Factor)

Physical Specifications
Mass in Air: 385 grams
Mass in Water: 280 grams

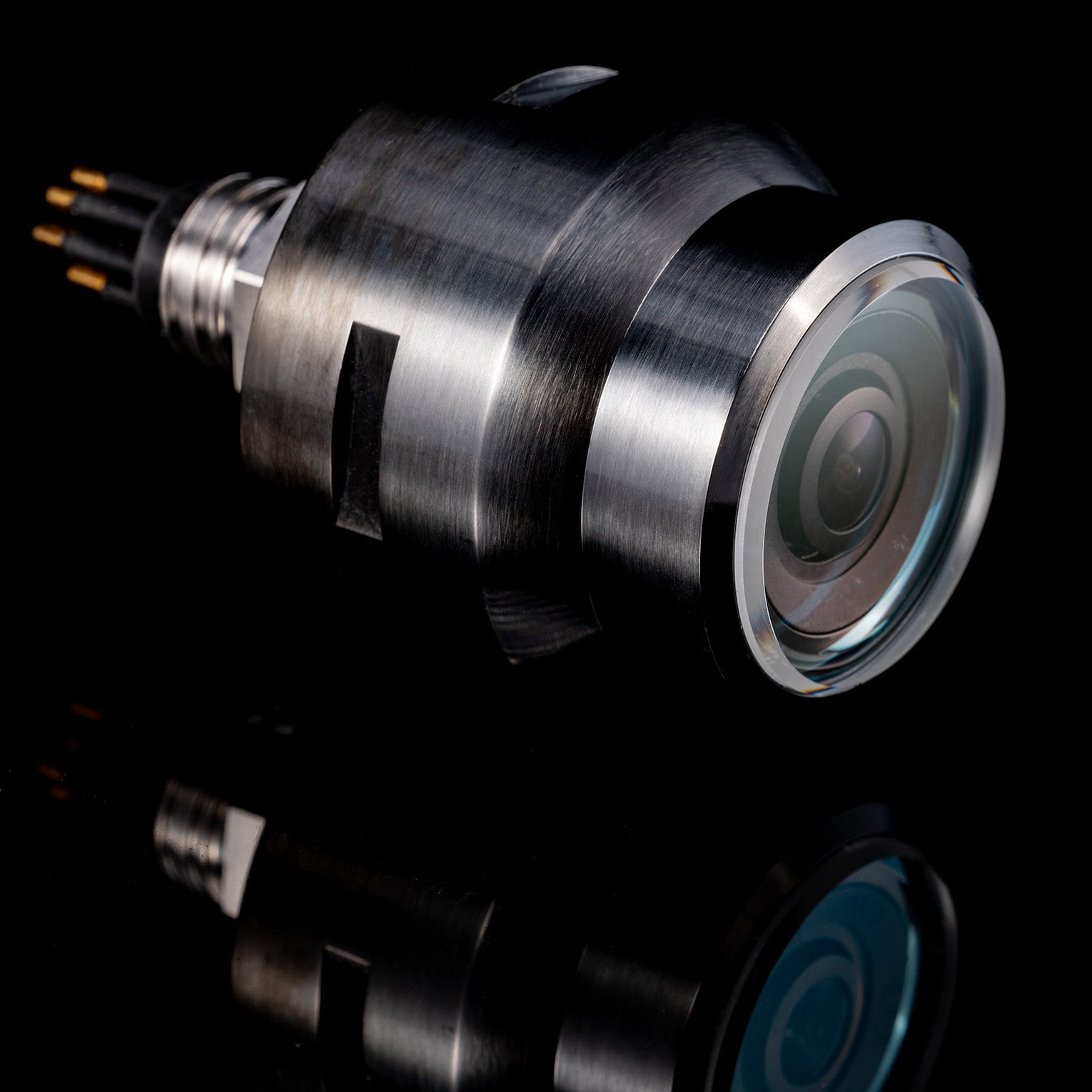

Main Case: Diamond-Like Carbon (DLC) Coated Titanium

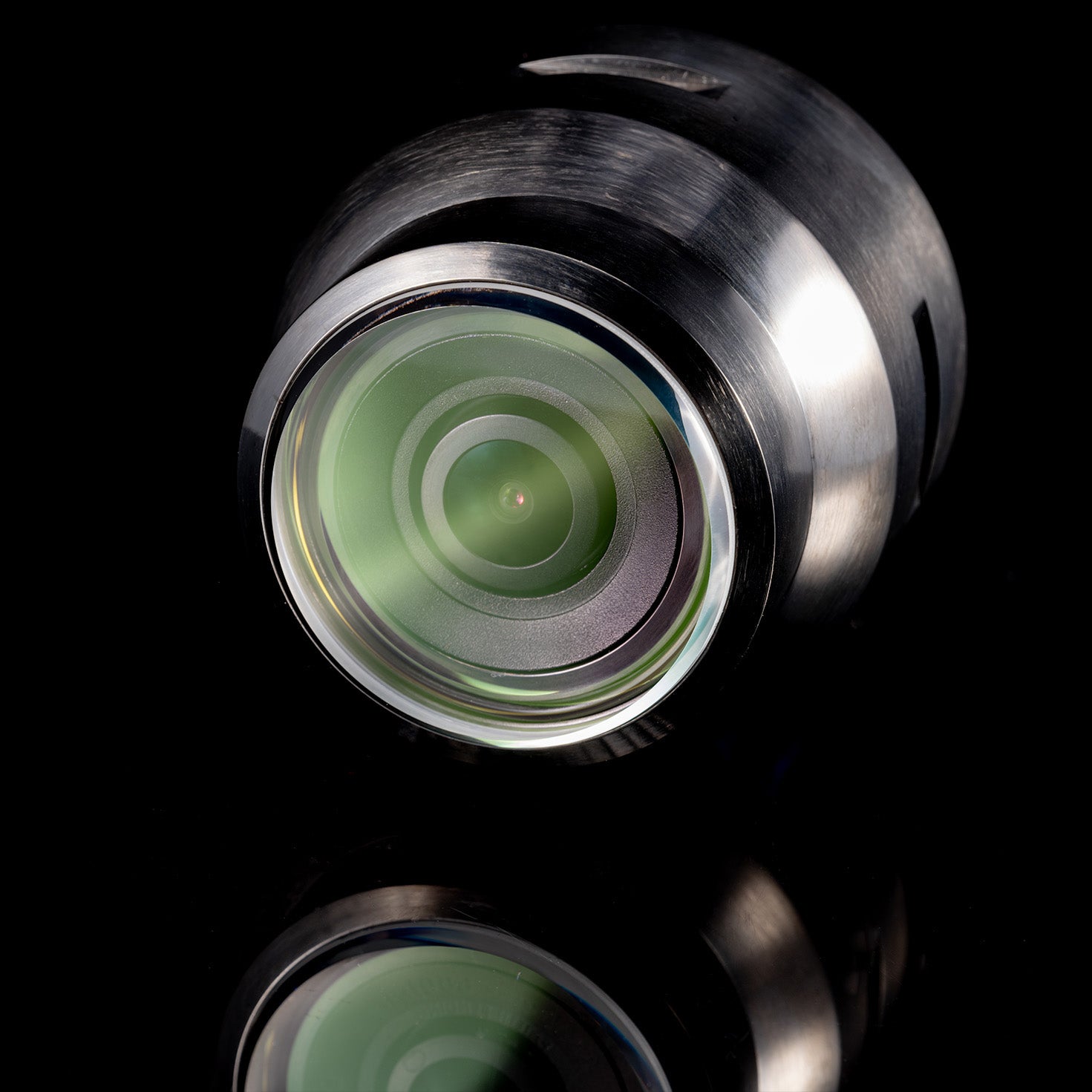

Front Port: Scratch-resistant sapphire with internal AR coating

Camera Specifications
Image Sensor: 1/2.9" Omnivision OmniPixel 3-GS™
CMOS 10-bit Global Shutter
Resolution: 1600x1300
(Adjustable down to 640x480)
Framerate: 60, 40, 30, 25, 15 FPS
Format: MJPEG, YUY2
Pixel Size: 3 um x 3um
Image area: 4857.696 um x 3955.896 um
Chroma: Color or Monochrome
Output Color Depth: 8 bit per channel
(24 bit for Color and 16 bit for Monochrome)
Glass to Glass Latency: 30ms ± 10
Interface: USB 2.0 High Speed
Power Rating: 5V / 250mA
Communication: USB Video Class (UVC Compliant)

Frame Sync Function
Offers 2 Camera Firmware (Leader or Follower)
Frequency: 15, 25, 30, 40, 60Hz (depending on framerate)
Recommended Duty Cycle: 30%
Logic Level: 3.3V
Rising Edge: 50ns or less

Connector Pinout
SubConn
1: Black : Ground
2: White : NC
3: Red : +5V
4: Green : NC
5: Orange : NC
6: Blue : NC
7: White/black : DATA -
8: Red/black : DATA +

Must be USB or Ethernet Grade Cables for the Data Pairs

Lens Specifications
Type: Fisheye
Lens Aperture: f/1.9
View Angle: 150 Degrees Diagonal (in water)
Minimum Focus Distance: 20-30 cm

Fit For
Remotely Operated Vehicles (ROVs)
Autonomous Underwater Vehicles (AUVs)
Autonomous Surface Vehicles (ASVs)
Aquaculture Systems
Aquarium Camera Array
Weather-resistant Unmanned Aerial Vehicles (UAVs)
Aerial Drones
...and more!

Lens Specifications

Standard Lens Option
Type: Fisheye
Lens Aperture: f/2.0
Minimum Focus Distance: 20-30 cm

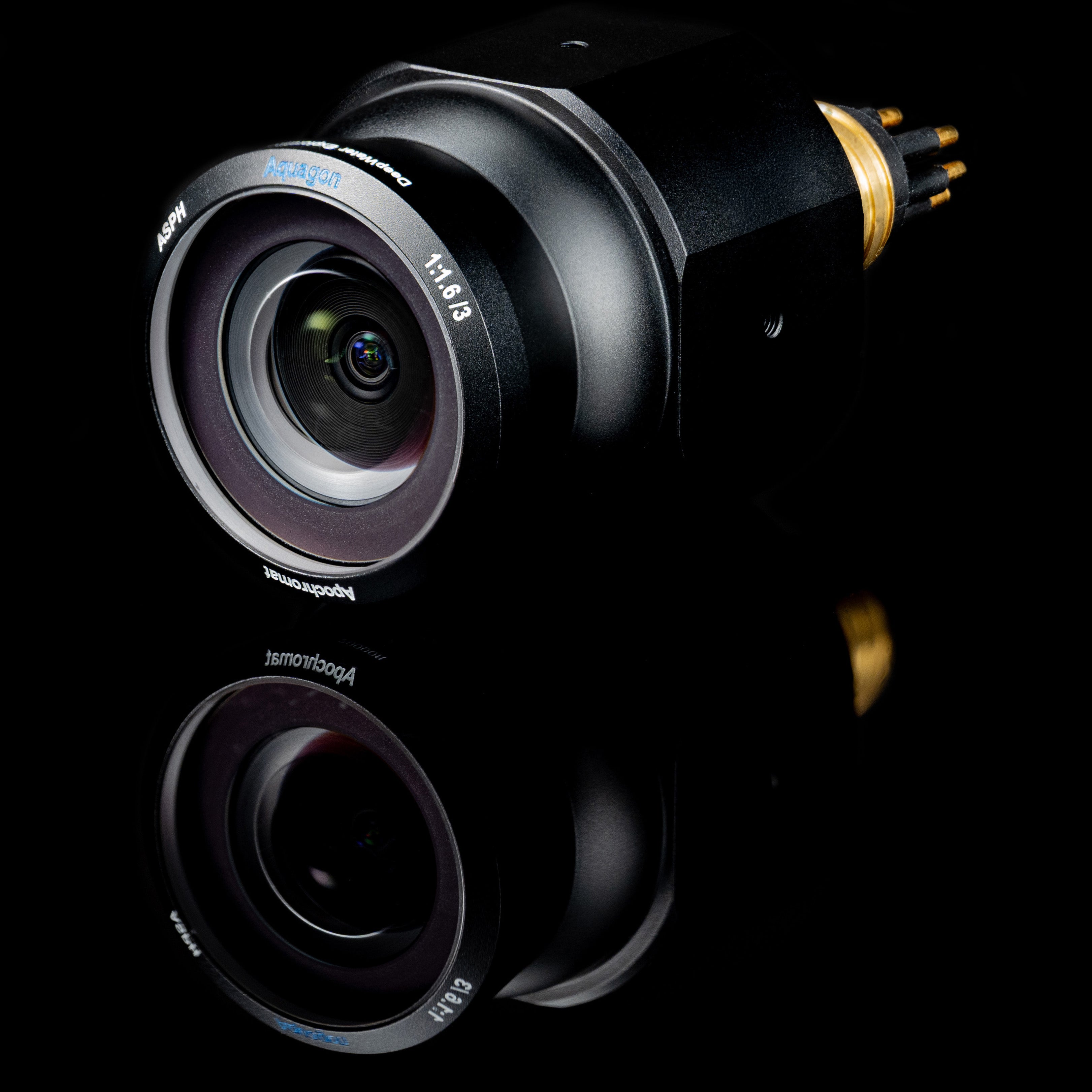

Aquagon Lens™ Option
(Distortion, CA-free Proprietary Optics)
Focal Length: 3mm
Lens Aperture: f/1.6 (fixed aperture)
Lens Construction: 7 elements; 2 aspherical elements, 2 ED elements

View Angle: 100 Degrees Diagonal (in water)
Minimum Focus Distance: 25cm
Distortion: <-1.5%

Calculated FOV
Diagonal: 93 Degrees
Horizontal: 78 Degrees
Vertical: 67 Degrees

Learn More

Note: Alternative Lenses Available Upon Request

Contents

  • 1x stellarHD Pro USB Camera
